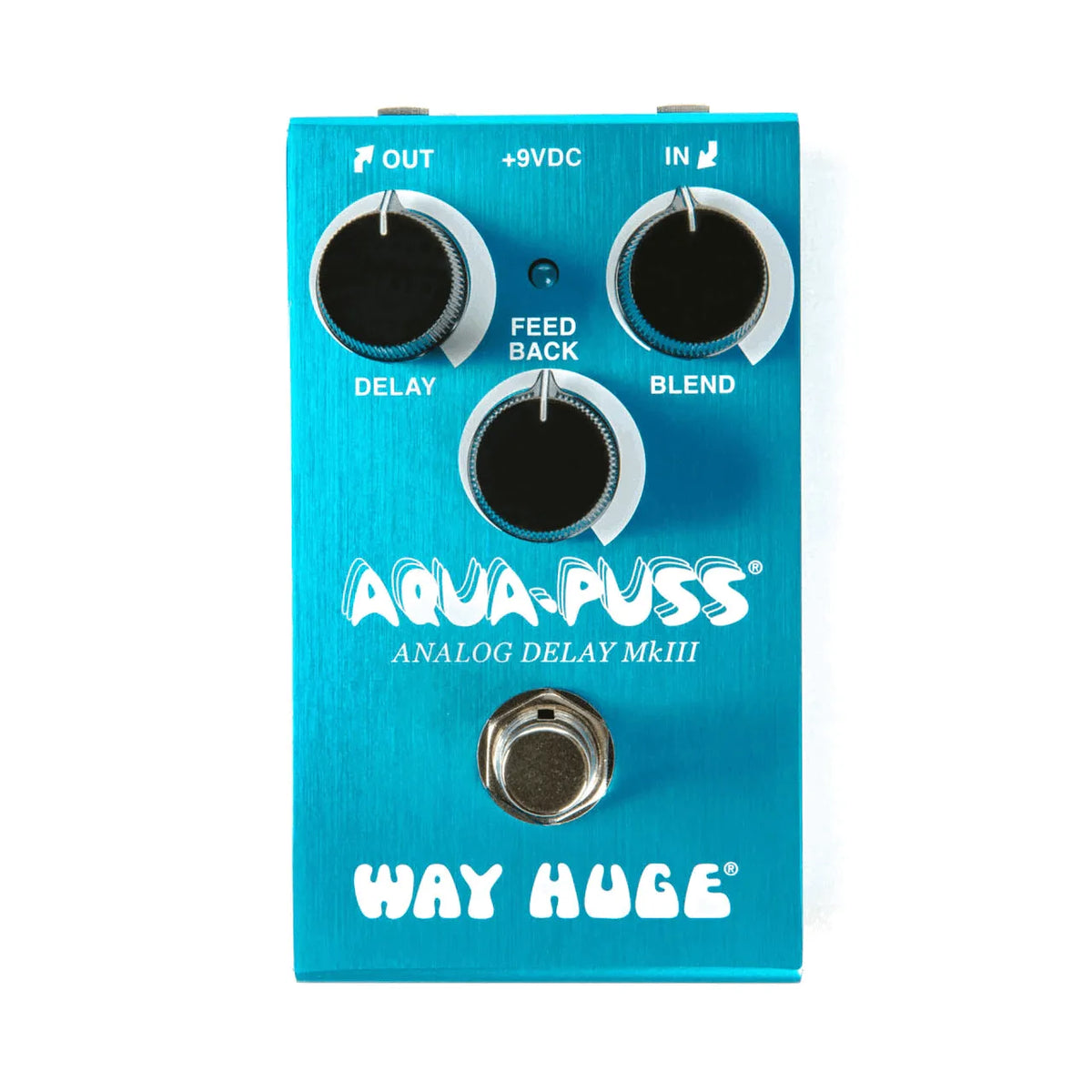

WAY HUGE® SMALLS™ AQUA-PUSS™ ANALOG DELAY
GET SLAPPY!
The Aqua-Puss Analog Delay is well-known for its bright and jangly repeats, as well as its straightforward operation. Now, all of those amazing features come in a Way Huge Smalls housing that your pedalboard will adore. With a delay time of 20ms to 300ms, this pedal is all about thickening tones and classic slap-back effects. The Feedback control adjusts delay duration and intensity, but be cautious! Using extreme settings are known to cause wild space-and-time-warping self-oscillation. Use the Blend knob to achieve a balance between dry and delay signals, ranging from mild to wild! The Aqua-Puss Analog Delay is a must-have for players who desire to add more depth to their tone or produce some sweet slap-back effects capable of making rockabilly or country legends envious. WM71 AQUAPUSS™ G
- DELAY knob adjusts warm organic delay times between 20ms and 300ms
- FEEDBACK knob sets the number of echo repeats
- BLEND knob regulates ratio of dry to delayed signal
- FOOTSWITCH toggles the effect on/bypass (blue LED indicates effect is on)

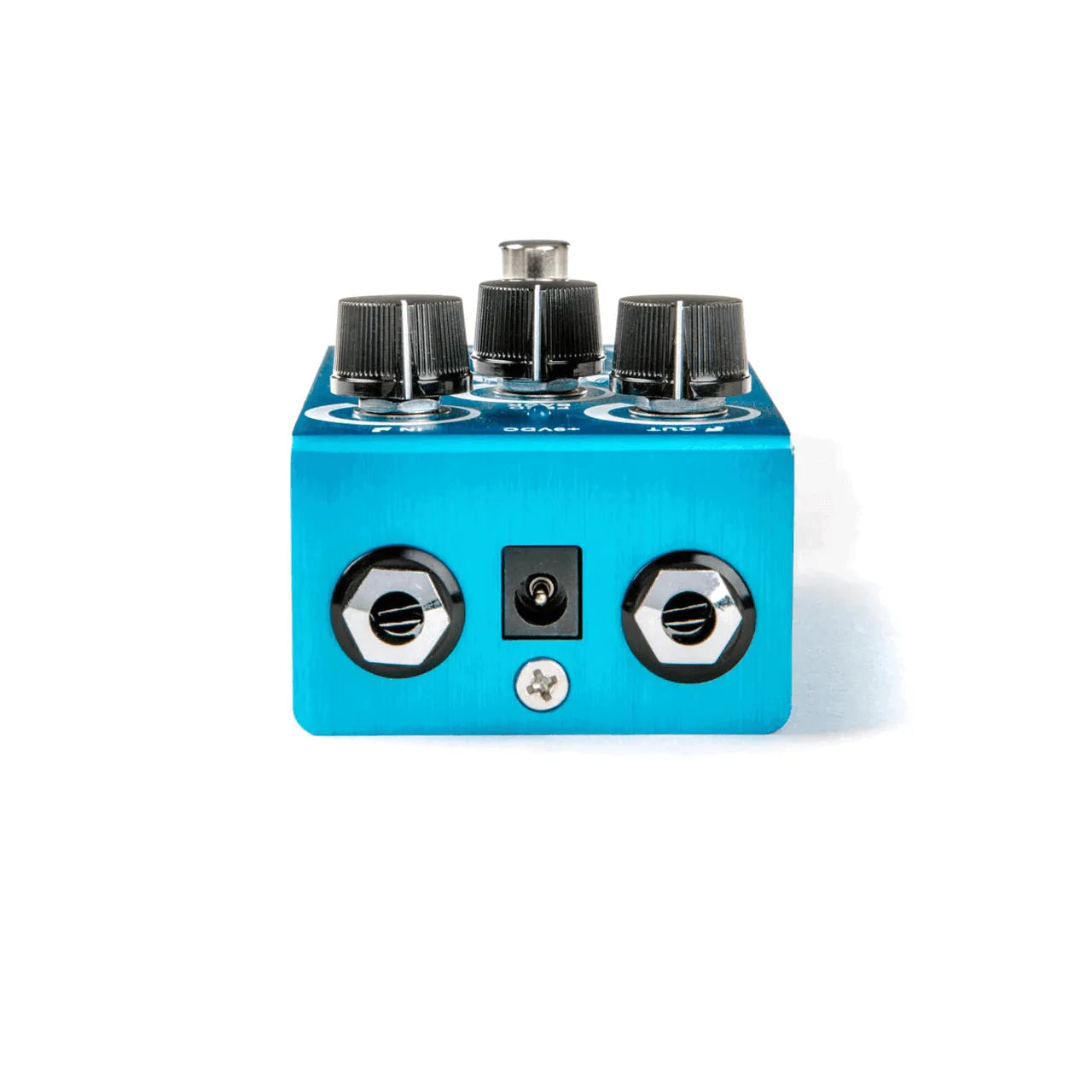

- POWER The Aqua-Puss™ Analog Delay can be powered by a single 9V battery or with a Dunlop ECB003 external DC power supply. The power input is a 5.5mm x 2.1mm jack with the positive voltage on the outer sleeve. Using an external power supply will disconnect the battery. Disconnect the input jack to preserve battery life when not in use. The pedal will lock into bypass mode when it is time to change the battery. It also includes power protection circuitry to prevent damage from AC power supplies.
Specifications
- Input Impedance > 300kΩ
- Output Impedance < 1kΩ
- Nominal Output -20dBV
- Signal To Noise Ratio* > 96dB
- Noise Reduction Ratio 2:1
- Bypass True Hardwire Relay
- Delay Distortion < = 1%
- Delay Range 20ms to 300ms
- Current Draw 16 mA
- Power Supply DC 9 volts
