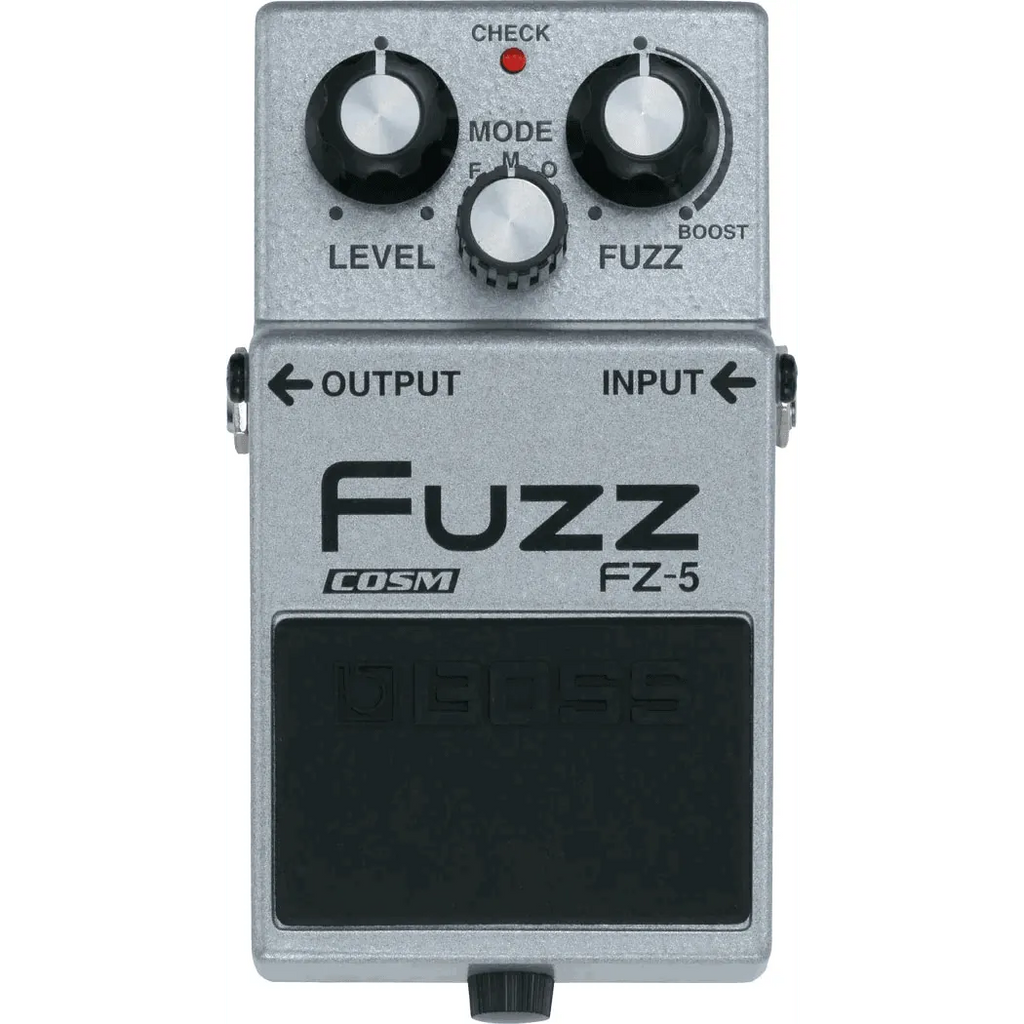

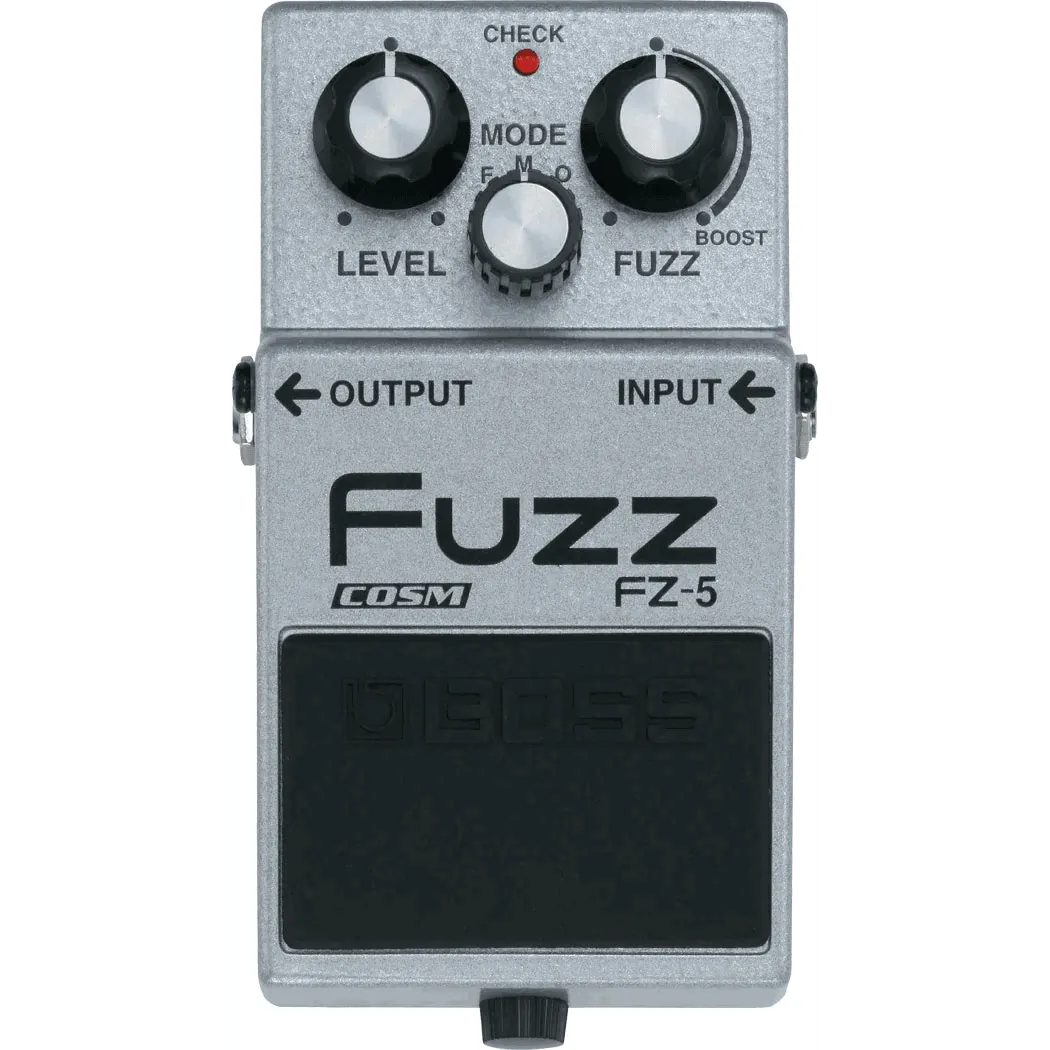

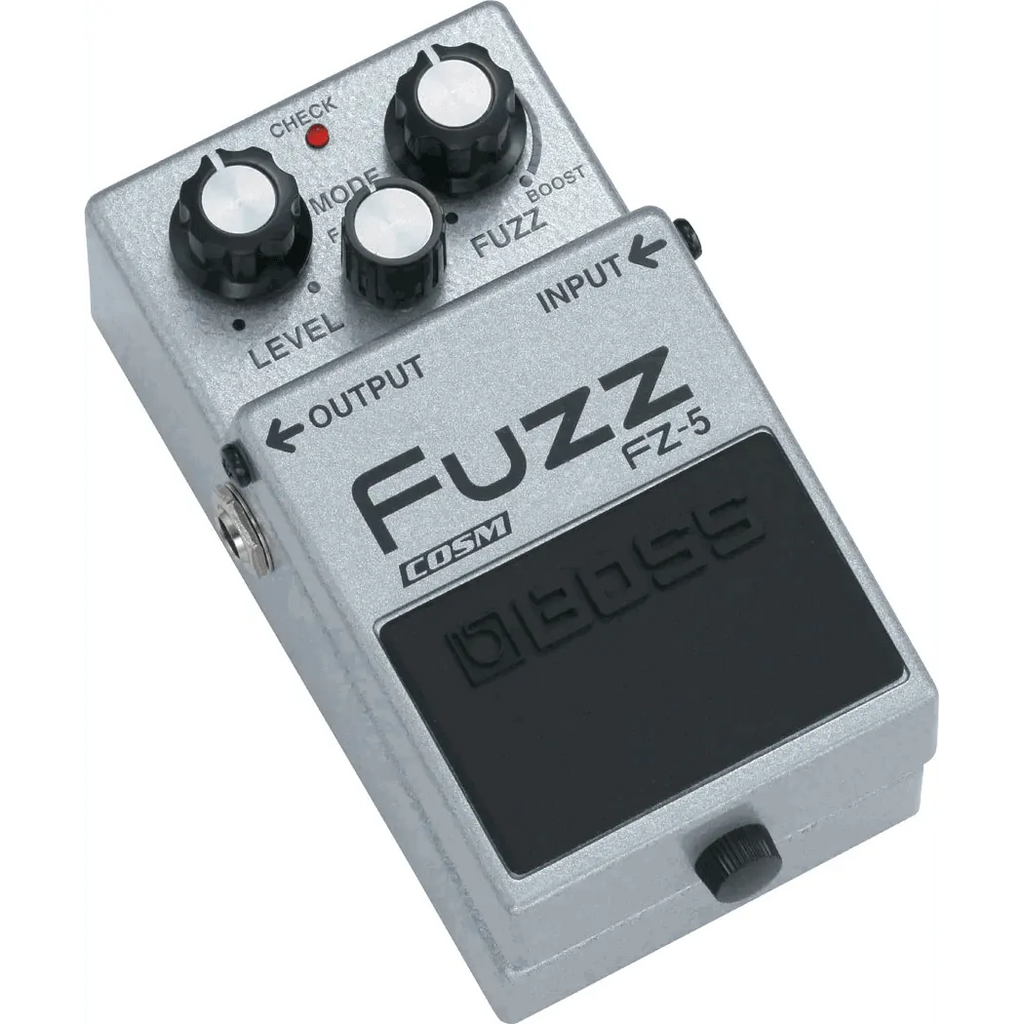

FZ-5
Fuzz
A DISTORTED BLAST FROM THE PAST
The FZ-5 is a modern pedal built for the modern guitarist, but the sounds you can get from the FZ-5 are pure retro.
Looking back at the glorious rock sounds of the '60s and '70s, the FZ-5 recreates its vintage fuzz through BOSS's state-of-the-art COSM technology. Recall the fuzz-filled flavors of classic pedals, such as Maestro FZ-1A, Fuzz Face, and Octavia pedals, and kick them into overdrive with the FZ-5's Boost knob.
BOSS’ proprietary COSM technology allows guitar players to recreate classic fuzz BOOST control for more aggressive tone. The FZ-5 is the perfect weapon for players wanting to beef up their rigs with classic retro fuzz artillery.
- Vintage sounds inspired by famous fuzz pedals of the ’60s and ’70s
- Uses advanced COSM technology to recreate classic fuzz
- BOOST control for more aggressive tone
- Road-tough BOSS metal construction
- BOSS five-year warranty
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Bypass: Buffered bypass
- Controls: FUZZ knob
- MODE knob
LEVEL knob
Pedal switch
- Indicator: CHECK indicator (Serves also as battery check indicator)
- Connectors: INPUT jack: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type
DC IN jack
- Power Supply: Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
- AC adaptor (PSA series: sold separately)
- Current Draw: 36 mA
- Expected battery life under continuous use: Alkaline: Approx. 10 hours
- Carbon: Approx. 3 hours
*These figures will vary depending on the actual conditions of use.
- Accessories: Owner's manual
- Mode sticker
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
- Options (sold separately): AC adaptor: PSA series
- SIZE AND WEIGHT
- Width: 73 mm 2-7/8 inches
- Depth: 129 mm 5-1/8 inches
- Height: 59 mm 2-3/8 inches
- Weight (including battery): 440 g 1 lb
